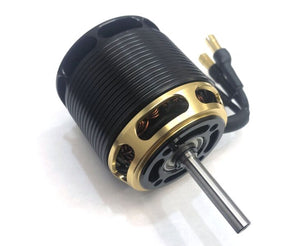

Combove Type Ⅲ 4225-810kv 6x36mm shaft
This is a fantastic motor for 8s 550-600mm helis or 6s-8s 700mm light weight helis
Specifications
| Stator Diameter |
42 mm |
| Stator Thickness |
25 mm |
| No. of Stator Arms |
12 |
| No. of Stator Poles |
10 |
| Motor Wind |
4T+3T Turn Delta |
| Motor Wire |
1-Strand 1.4 mm |
| Motor Kv |
810KV RPM/Volt |
| No-Load Current (Io/10V) |
2.85 Amps |
| Motor Resistance (RM) |
0.021 Ohms |
| Max Continuous Current |
90 Amps |
| Max Continuous Power |
2780 Watts |
| Weight |
360 Grams |
| Outside Diameter |
52.5 mm |
| Shaft Diameter |
6 mm |
| Body Length |
54.5 mm |
| Overall Shaft Length |
94.5 mm |
| Max Lipo Cell |
6s~8s |
| Max Peak Current |
115 Amps (5 seconds) |
| Max Peak Power |
4110 Watts (5 seconds) |
| Motor Timing |
5deg~12deg |
| Drive Frequency |
8kHz~32khz |
