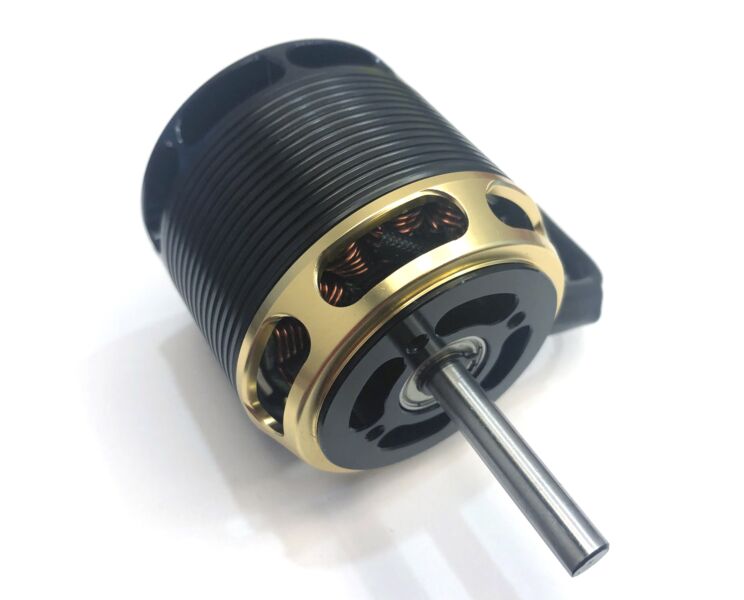

COMBOVE TYPE IV 4020-900KV 6x31mm shaft

  • $129.95


Specifications

Stator Diameter 40 mm
Stator Thickness 20 mm
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 6+5 Turn Delta
Motor Wire 1-Strand 1.2mm
Motor Kv 900KV RPM/Volt
No-Load Current (IO/10v) 2.6 Amps
Motor Resistance (RM) 0.0145 Ohms
Max Continuous Current 78 Amps
Max Continuous Power 1780 Watts
Weight 300 Grams

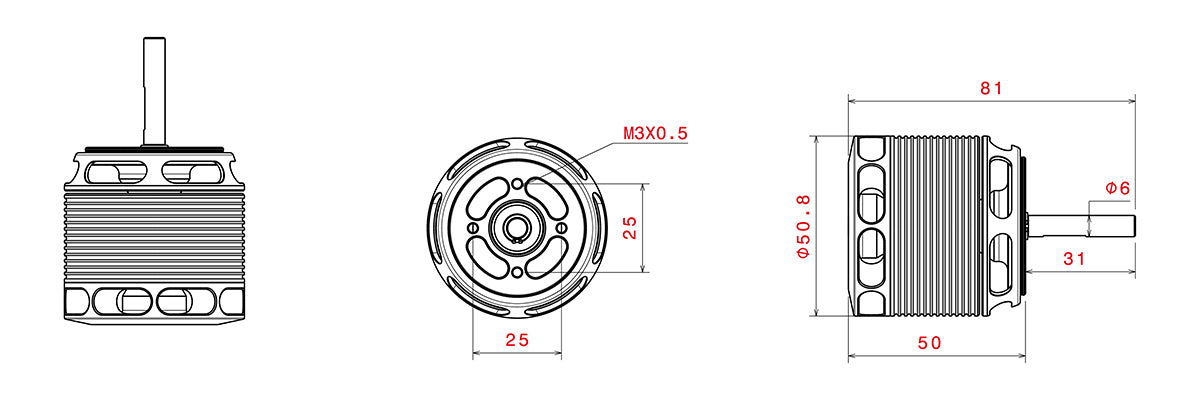

Outside Diameter  50.8 mm
Shaft Diameter 6 mm
Body Length 49.5 mm
Overall Shaft Length 81 mm
Max Lipo Cell 6s
Peak Continuous Current 90 Amps (5 seconds)
Peak Continuous Power 2000 Watts (5 seconds)
Motor Timing 5deg~12deg
Drive Frequency 8kHz~32khz
