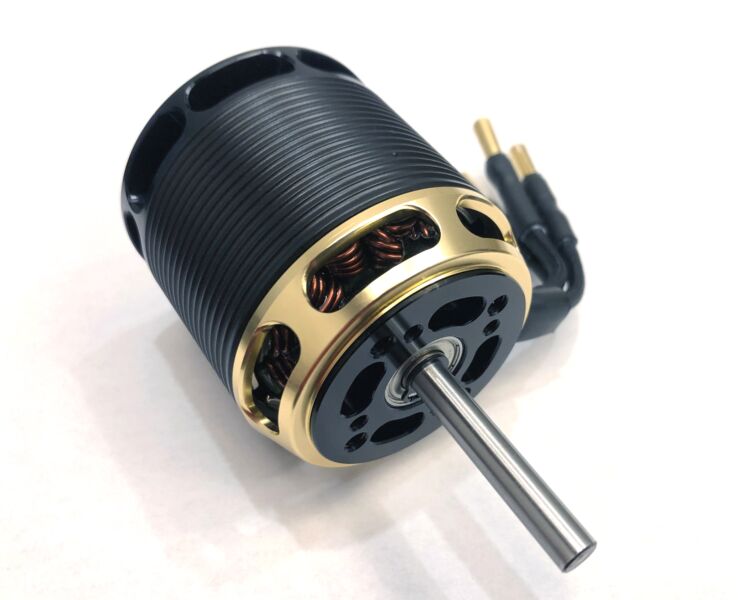

Combove Type IV 4025-550kv 6x36mm shaft
Specifications
| Stator Diameter |
40 mm |
| Stator Thickness |
25 mm |
| No. of Stator Arms |
12 |
| Magnet Poles |
10 |
| Motor Wind |
7+6 Turn Delta |
| Motor Wire |
1-Strand 1.2 mm |
| Motor Kv |
550KV RPM/Volt |
| No-Load Current (IO/10v) |
1.27 Amps |
| Motor Resistance (RM) |
0.018 Ohms |
| Max Continuous Current |
70 Amp |
| Max Continuous Power |
2910 Watt |
| Weight |
350 Grams |
| Outside Diameter |
50.8 mm |
| Shaft Diameter |
6 mm |
| Body Length |
54.5 mm |
| Overall Shaft Length |
90 mm |
| Max Lipo Cell |
12s |
| Peak Continuous Current |
95 Amps (5 seconds) |
| Peak Continuous Power |
4120 Watts (5 seconds) |
| Motor Timing |
5deg~12deg |
| Drive Frequency |
8kHz~32khz |
