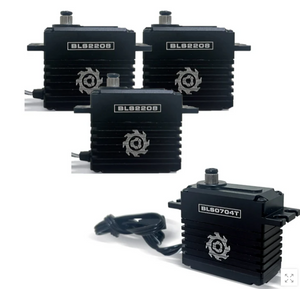

Torq BLSBE Combo - Brushless Fullsize Black Edition Servo Set
Includes :
- TORQ BLS2208-BE x 3
- TORQ BLS0704T-BE x 1
BLS2208-BE Spec:
Speed:
- 0.07 sec / 60° @ 8.4V
- 0.08 sec / 60° @ 7.4V
- 0.09 sec / 60° @ 6.0V
Torque:
- 25Kg.cm / 347.18 oz in. @ 8.4V
- 22Kg.cm / 305.52 oz in. @ 7.4V
- 18Kg.cm / 249.97 oz. in. @ 6.0V
Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Frequency: 1520us / 333Hz
- Weight: 78g
- Dimensions: 40.5mm x 20mm x 38mm (LxWxH)
- Voltage Range: 6.0V - 8.4V
BLS0704T-BE Spec:
Speed:
- 0.035 sec / 60° @ 8.4V
- 0.040 sec / 60° @ 7.4V
- 0.045 sec / 60° @ 6.0V
Torque:
- 8.0Kg.cm / 111.09 oz. in. @ 8.4V
- 7.0Kg.cm / 97.21 oz. in. @ 7.4V
- 6.0Kg.cm / 83.32 oz. in. @ 6.0V
Specifications:
- Motor Type: Brushless
- Servo Arm Type: Futaba
- Working Pulse Width / Frequency: 760us / 560Hz
- Weight: 78g
- Dimensions: 40.5mm x 20mm x 37mm (LxWxH)
- Voltage Range: 6.0V - 8.4V
Usage Note:
Servo Grommet is suggested if you use our servo on Nitro Heli.
